Product Overview
Kev Cai Yas Npog Txhaj Molding Solutions rau OEM & Lag luam wholesale
Peb muab kev cai yas npog txhaj tshuaj molding, txhawb thoob ntiaj teb OEM thiab cov neeg yuav khoom lag luam wholesale los ntawm pwm tsim thiab DFM tsom xam kom ruaj khov siab - ntim ntau lawm. Rov qab los ntawm ISO 9001 kev tswj hwm kev ua tau zoo thiab kev tshawb xyuas cov txheej txheem nruj, peb cov peev txheej tsim tau ua kom zoo ib yam, siab -qib cov khoom siv rau cov khoom siv hluav taws xob, khoom siv hauv tsev, thiab kev siv tsheb.
DFM Analysis & Pwm Engineering
Cov khoom zoo thiab qhov sib xws nyob ntawm qhov kev tsim pwm thiab cov cuab yeej raug. Ua ntej txiav cov hlau, peb pab neeg ua haujlwm engineering ua tiav Kev Tsim Kho Kev Tsim Khoom (DFM) thiab pwm ntws tsom xam kom tshem tawm cov khoom tsis xws luag.
Pwm Flow Simulation
Predicts resin flow paths los tiv thaiv kev txhaj tshuaj luv luv, weld kab, thiab cov hnab ntim cua.
Rooj vag & Txias Optimization
Optimizes qhov chaw tso rau hauv lub qhov rooj kom txo tau qhov pom kev blemishes thiab tsim conformal los yog txheem cua txias circuits kom muaj xws li pwm kub thiab txo lub sij hawm voj voog.
Draft & Parting Line Control
Siv cov kaum sab xis kom raug (0.5 degrees mus rau 2 degrees nyob ntawm qhov kev ntxhib los mos) thiab cov kab sib cais tsim los tiv thaiv flash thiab xyuas kom huv si ejection.
Cov yam ntxwv zoo
Integrate robust snap fits, internal ribbing rau structural rigidity, mounting bosses, thiab qhov cua louvers tsis ua rau dab dej cim los yog siab nyob rau hauv kev ntxhov siab.
Engineering yas xaiv
Xaiv cov resin kom raug ua kom cov ntaub ntawv yas thiab npog tiv thaiv kev ua haujlwm, thermal raug, thiab ib puag ncig.
|
Khoom siv |
Ntsiab Mechanical & Thermal Properties |
Cov ntawv thov kev lag luam |
|
ABS |
Kev tiv thaiv siab, zoo heev nto tiav, yooj yim rau xim los yog electroplate |
Hluav taws xob cov vaj tse, cov cuab yeej siv tes tuav, tswj vaj huam sib luag |
|
PC (Polycarbonate) |
Lub zog muaj zog, zoo dua qhov ruaj khov, kub tiv taus mus txog 120 ° C |
Heavy-cov khoom siv ua haujlwm hauv kev lag luam, cov ntaub thaiv kev nyab xeeb |
|
PC + ABS |
Ua ke cov dej ntws thiab ua tiav ntawm ABS nrog lub zog muaj zog thiab thermal tsis kam ntawm PC |
Automotive sab hauv trim, hluav taws xob hlws ris thawv, ntsuas vaj tse |
|
Nylon (PA) |
Lub zog tensile siab, tshwj xeeb hnav thiab tshuaj lom neeg ua haujlwm |
Cov cuab yeej tiv thaiv, hnyav- lub luag haujlwm npog |
Production Scaling: From Prototype to Mass Production
Prototyping
Siv cov cuab yeej ceev ceev lossis CNC machining los txheeb xyuas cov qauv kev ncaj ncees, kev sib dhos tshem tawm, thiab ua haujlwm kom haum ua ntej ua rau siab - cov nqi tsim pwm.
Medium & High Volume Ntau Lawm

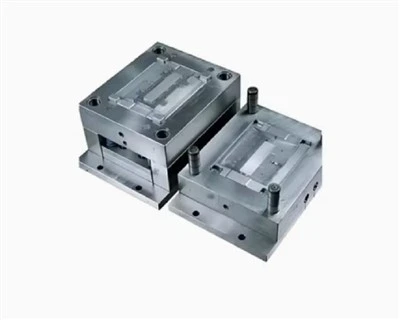

Siv ib zaug -kab noj hniav los yog ntau- kab noj hniav hardened steel pwm (xws li P20, H13, los yog NAK80) ntawm precision txhaj tshuaj molding tshuab xws li 90T txog 800T, tswj kev txhaj tshuaj ruaj khov- mus rau - txhaj tshuaj rov ua dua.
Nto Finishing & Secondary Operations
VDI los yog Pwm-Tech etching siv ncaj qha rau cov kab noj hniav pwm los npog cov cim me me hauv lub dab dej, txo cov ntiv tes smudges, thiab muab cov tactile tuav.
Siab - polished pob zeb diamond compounding rau kho qhov muag lossis hwm cov neeg siv khoom zoo nkauj.
Automated spray painting, roj hmab-kov mos coatings, thiab UV-resistant topcoats.
Laser engraving thiab pad luam ntawv rau cov logos mus tas li, serial tooj, thiab cov ntawv ntaus nqi.
Kev Tswjhwm Zoo & Kev Ntsuam Xyuas Cov Qauv
Ua haujlwm raws li ISO 9001 tus qauv nruj, kev tshuaj xyuas tau muab tso rau hauv txhua theem tsim khoom kom lav cov khoom sib xws-rau-batch sib xws:
Incoming Material Check:Kev txheeb xyuas cov lej ntawm cov khoom siv raw, yaj ntws Performance index (MFI), thiab cov chaw tsim khoom pov thawj ntawm kev tsom xam (CoA).
Thawj Tshooj Kev Tshuaj Xyuas (FAI):CMM (Kev Sib Koom Tes Ntsuas Lub Tshuab) qhov ntsuas qhov ntsuas ntawm qhov pib molded qauv tiv thaiv 3D CAD qauv.
Txheej Txheem Saib Xyuas:Automated xyuas ntawm kev txhaj tshuaj siab, chim kub, clamping quab yuam, thiab lub sij hawm cua txias.
Final Pre-Shipment Audit:Kev tshuaj xyuas qhov tsis xws luag, flash, warp, thiab poob - kuaj kev ua raws li kev ntim khoom.
Technical Specification Summary
|
Parameter |
Muaj peev xwm / Txuj |
|
Cov txheej txheem tseem ceeb |
Siab -kev txhaj tshuaj molding (Kev cai yas Enclosure Moulding) |
|
Khoom siv ntau yam |
ABS, PC, PC + ABS, PP, PA (Nylon), PMMA |
|
Dimensional kam rau ua |
TS EN ISO 2768-m (Cov cuab yeej ua haujlwm siab ntev txog li 0.02 hli) |
|
Tshuab Tonnage |
90t800t ua |
|
Pwm Steel Options |
P20, 718H, H13, NAK80 |
|
Tus nqi -Kev Pabcuam Ntxiv |
DFM tsom xam, pwm ntws cov ntaub ntawv, ultrasonic vuam, kev cai ntim |
FAQ
Q: Cov ntaub ntawv dab tsi feem ntau siv rau cov npog yas?
A: Cov ntaub ntawv muaj xws li ABS, PC, PC + ABS, PP, thiab PA. Cov khoom siv zoo tshaj plaws nyob ntawm qhov yuav tsum tau muaj xws li kev cuam tshuam, qhov kub thiab txias, qhov tsos, thiab kev siv ib puag ncig.
Q: Koj puas tuaj yeem tsim cov hnab yas customized raws li cov duab kos?
A: Yog. Peb muab kev cai txhaj tshuaj molding kev pabcuam raws li 2D kos duab, 3D cov ntaub ntawv, cov qauv, lossis cov ntsiab lus ntawm cov khoom. Peb cov engineers tseem tuaj yeem pab txhim kho cov qauv tsim kom zoo dua molding kev ua tau zoo.
Q: Dab tsi yog lub sij hawm txhuas txhuas rau kev tsim cov yas npog?
A: Lub sijhawm ua haujlwm yog nyob ntawm cov khoom lag luam nyuaj, pwm qauv, thiab txiav txim kom muaj nuj nqis. Prototype tej yaam num feem ntau yuav tsum tau siv sij hawm tsawg dua, thaum loj ntau lawm tej yaam num yuav tsum tau ntxiv pwm tsim thiab kuaj lub sij hawm.
Q: Koj puas tuaj yeem muab cov yas npog cov qauv ua ntej ntau lawm?
A: Yog. Kev tsim qauv tsim pab cov neeg siv khoom txheeb xyuas cov qauv khoom, kev sib dhos ua haujlwm, thiab qhov zoo li ua ntej nqis peev hauv tag nrho - nplai ntau lawm.
Q: Koj puas txhawb OEM thiab ntiag tug daim ntawv xaj?
A: Yog. Peb txhawb OEM / ODM tej yaam num xws li customized designs, pwm, nto tiav, logos, thiab ntim cov kev daws teeb meem.
Q: Koj yuav ua li cas kom cov yas npog zoo?
A: Kev ua tau zoo yog tswj hwm los ntawm kev tshuaj xyuas cov khoom, kev kuaj pwm, kev tshuaj xyuas ntau lawm, kev kuaj xyuas qhov ntev, kev tshuaj xyuas zoo, thiab kev tshuaj xyuas cov khoom kawg ua ntej xa zaub mov, txhawb nqa los ntawm peb cov ISO 9001 kev tswj xyuas zoo.
